| Pulser |
- Pulse type : Negative spike
- Pulse Voltage : 100~475V
|
| Receiver |
- Gain : -14~+60 dB
- Bandwidth : 0.5~50 MHz
|
| A/D Converter |
|
|

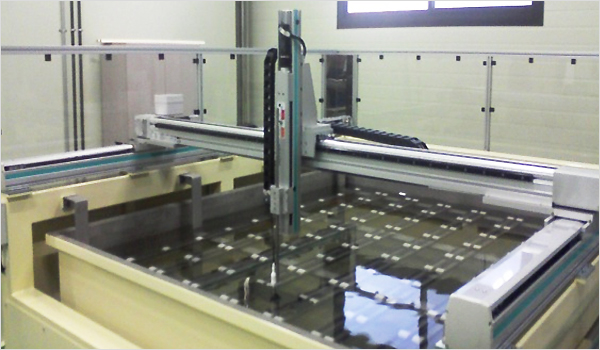

| Mechanical Scanner |
- Axis : 3 Axis
- Motor : DC Brushless Motor, Step Motor, AC Servo Motor are available
|
 |
|
 |
- Saving various format image file
Inspection condition loading from clicking mouse one time
- Multiple Gate for several area inspections in one scanning
Histogram display of scanning result
Various color-map
Calculate of the rate Good vs Bad
Calculate for the rate or area
- Print the screen automatically
- Joystick Control
- Brightness, Contrast Control
- Zoom
- Select area (Rectangle or Circle)
- Useful window management
|

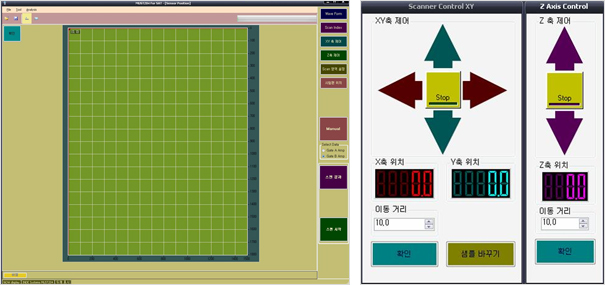

| Scanner Position Display & Control |
 |

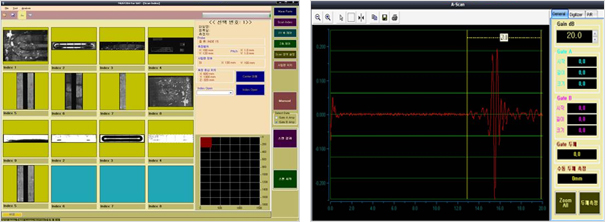

| Scanning images & A-scan display |
 |

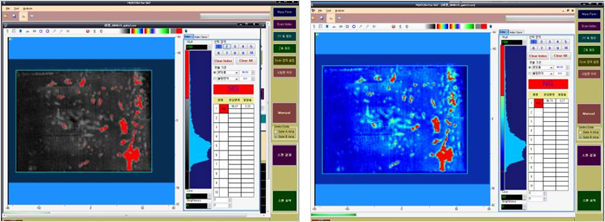

| Various Color-map for display |
 |
|
|
|
|
|
|
