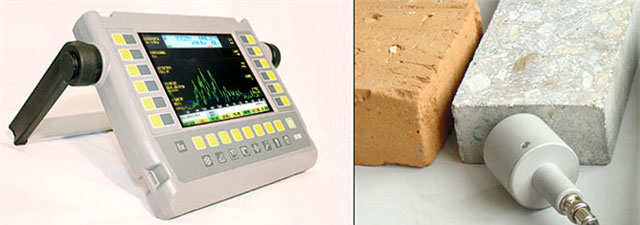

| Portable Instrument for testing materials with high attenuation of ultrasonic waves, as concrete, wood, plastic materials, constructions and coarse-grained materials. |
 |
| The instrument is suited for testing materials with high attenuation of ultrasonic waves, as concrete, plastic materials with enhanced attenuation, constructions and coarse-grained materials in general. The principal feature of this equipment is its low operation frequency from 20 kHz to 1 MHz. The DIO 1000 LF kit includes one pair of low frequency transducers (1 pc. transmitter and 1 pc. receiver) |
|
 |
|
STARMANS low frequency transducers are single element transducers designed to work at frequencies of 50 kHz, 120 kHz, 200 kHz and 400 kHz. One pair of transducers consists of Transmitter and Receiver.
|
| Designation |
Dimensions (mm) |
Connector |
Frequency |
| PNL-45-005T / PNL-45-005R |
Ø 45 mm |
BNC |
50 kHz |
| PNL-19-012T / PNL-19-012R |
Ø 19 mm |
BNC |
120 kHz |
| PNL-11-002T / PNL-11-002R |
Ø 11 mm |
BNC |
200 kHz |
| PNL-F25-04T / PNL-F25-04R |
Ø 25 mm |
BNC |
400 kHz |
|
|
 |
| General specifications |
| Display Screen |
6“ TFT LCD, 1024x768 pixels 60 Hz update rate |
| Display dimensions |
99x130mm |
| True sampling rate |
200MHz, 12-bit |
| Dimension (W x H x D) |
224 mm x 188 mm x 34 mm |
| Weight |
1.3 kg with battery |
| Battery |
Built-in Li-Ion battery 3.6V, 16Ah |
| Battery operating time |
Up to 10 hours |
| Languages |
Selectable, user-defined custom language |
| External Power Supply for Adaptor |
AC 80V~240V 50Hz/60Hz |
| Data Memory |
4 " 16GB (up to 40000 A-Scans) |
| Warranty: |
2 years, optional 3 years |
|
| Environment Tests |
| Operation Temperature |
-20°C~50°C |
| Storage Environment |
-40°C~70°C |
|
| DIO 1000 LF Low Frequency |
| Input / Output |
|
| USB Connector |
One " Host USB |
| Encoder Connector |
A, B " pulses, TTL 5V, Start |
| Ethernet Connector |
External (optional on USB) |
| High Speed Parallel and TTL Port (optional) |
Alarm outputs, trigger in/out control |
| Analog Output |
AOUT1: Position of Echo flank in Gate 1 or EchoStart + AUX in Gate 4 AOUT2: Presence of Echo in Gate 1 or Echo Amplitude or Thickness |
| System |
|
| A/D Sampling Frequency |
200 MHz |
| Probe connector |
Standard Lemo® |
| Number of Channel |
1 channel |
| Scan |
|
| Scan Type |
B-scan Thickness / R-G-B amplitude |
| Focal Law quantity |
N/A |
| Scan Setup |
B-scan Thickness Max / Min / Nominal, R-G-B palette modified by Gate1 level |
| Calibration |
|
| Range |
0~29000mm for PRF 100Hz (Steel longitudinal wave) |
| Resolution |
5ns for all echo position measurements and timebase settings |
| Material Velocity |
1~19999 m/s |
| Display Delay |
-25~29000mm (Steel longitudinal wave) |
| Auto Transducer Calibration |
Zero offset and velocity |
| Units |
mm, inch, μs |
| Refracted Angle |
Fixed settings of 0°, 30°, 45°, 60°, 70°; variable 10°~90° in 0.1° steps for calculations, Skip diagram |
| Test Modes |
Dual (Through-Transmission), Dual+EXTamplifier |
| Probe Delay Range |
-10μs~4800μs |
| Gates |
|
| Gate Monitors |
Four Gates: Floating gate, Interface gate, Measuring gate, Back-wall attenuator |
| Alarms |
Selectable threshold positive/negative |
| Cursors |
N/A |
| Measurement |
|
| Display Mode |
A, A+B-scan, A+TOFD, A+Beam shape |
| Peak hold |
Freezes Echo envelope |
| Auto Gate |
Thickness |
| DAC, JIS-DAC |
20 points, linear or dB-linear interpolation, 4 sub-curves (AUX lines) |
| DGS (Distance Gain Size) |
BW, SDH, DSR calculation of curve, ERS (Equivalent Reflector Size) |
| TCG (Time Corrected Gain) |
for DAC/DGS |
| Attenuation compensation |
up to 400.0 dB/m in 0.1 dB/m steps |
| AWS |
Curve, value+AWS class |
| API |
5UE Evaluation mode Yes |
| Spot |
weld (optional) N/A |
| Curved Surface Correction |
Inside, ouside |
| Colour maps |
R-G-B |
| Test Point Selection |
Peak, Peak+Flank, Peak+Flank+FirstPeak |
| Measurement method |
Four Gates: Each can measure echo amplitude, position, alarm. Gate 1: Sound Path, Depth, Surface Distance (curved surface). Gate 2: Thickness. Gate 3: Back-wall attenuator. Gate 4: Interface. Skip diagram for Angle probes |
| Gate Start |
Full Range |
| Gate Width |
Full Range |
| Gate Trash |
2~98% |
| Pulse Transmitter |
|
| Pulser |
Unipolar Square Wave, Burst |
| Repetition Frequency |
10Hz~20kHz, peak envelope of A-scan display |
| Energy |
75~275V |
| Pulse Width |
15ns~50μs (10kHz~33MHz) |
| Damping |
180 and 1000Ω |
| Pulser Focusing |
N/A |
| Pulser Delay |
N/A |
| Receiver |
|
| Gain |
0~111dB with 0.1/0.5/1.0/6dB step |
| Digital Gain |
-6~36dB used for TCG |
| Bandwith |
10kHz~10MHz at -3dB |
| Rectification |
Pos HW, Neg HW, FW and RF |
| Amplitude measurement |
0~150_ FSH |
| Filter |
50k,120k,200k,400k,500k, 10k~200k BP; 10k/100kHz HP; digital LP 6Mhz |
| Averaging |
2 ~ 64x applied on limited range |
| Reject |
0~70% |
| Receiver Delay |
N/A |
|
|
|
|
|
|
