MUST204 S/W |

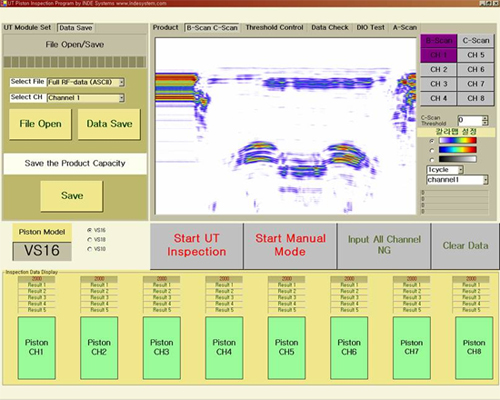

ä A-scan ȣ(RF ȣ), B-scan ̹ ⺻ ϸ, ä ˻縦 ̿Ͽ ÿ ˻ ϰų ˻ ֵ S/W 谡 ϴ. Ʒ GUI ÿ 8 ˻ϰ мϿ ҷ θ Ǵϴ ˰ ˻ ҷ θ Ÿ ش. |
|
|
MUST204 H/W |
⺻ |
|
Pulse Voltage |
-40V to -300V, 256 steps |
Pulse Width |
50 ns to 728ns, 256 steps |
Damping |
500S, or 50S |
Internal Trigger |
1 Hz to 5000 Hz in 10 Hz increments when internal trigger is selected |
Receiver Gain |
0 dB to 80 dB in 0.1dB increments |
DC Offset |
-2.5V to 2.5V in 5mV increments |
Low Pass Filter |
All, 48MHz, 28MHz, 18MHz, 8.8MHz, 7.5MHz, 6.7MHz, or 5.9MHz |
High Pass Filter |
4.8MHz, 1.8MHz, 0.8MHz, or 0.6MHz |
Waveform |
Full rectify, + half rectify, - half rectify, or RF |
Sampling Rate |
100MHz, 50MHz, 25MHz, 12.5MHz, 6.25MHz, 3.125MHz, 1.5725MHz |
Resolution |
8 bits (0 to 255) or 9 bits (0 to 511) |
Waveform Length |
16 to maximum memory available in 4-sample steps |
Trigger Source |
external, internal or software |
Add-on Options |
Quadrature encoder counters |
|
MUST204 ý ɼ |
Rack PC ?ý |
Portable PC ý |
|
|
IBM PC ȣȯ |
|
|
|
|
UTCom205 S/W ɼ |
- A-scan (⺻ : RF ȣ)
- B-scan ( ܸ )
- C-scan ( ܸ )
- 3D-scan
- TOFD
- Tandem
- DIPT pipe scan
- PE Butt Joint Inspection (Polyethylene)
- Positioning
- β
|
UTCom205 ü H/W ɼ |
|
USB-Digital Ultrasonic P/R |
⺻ |
|
Pulse Voltage |
-40V to 300V in 256 steps |
Pulse Width |
50ns to 500ns in increments of 20ns |
Damping |
500 |
Internal Trigger |
1Hz to 1,000Hz 1Hz increments |
Receiver Gain |
0dB to 80dB in 0.1dB increments |
Filter |
0.6MHz to 18MHz fixed |
Waveform |
Full rectification, +Half/ -Half rectification or RF |
Sampling Rate |
50MHz, 25MHz, 12.5MHz, 6.25MHz |
Signal Resolution |
8bits (0 to 255) |
Waveform length |
2 to 8,191 samples per scan-line |
Trigger Souce |
?Internal or software |
Transducer Range |
1 to 10 MHz |
Connectors |
2 Lemo Connectors : Pulse Out and Pulse In |
Mode Switch |
Pulse Echo or Through Transmission selection |
߰ ɼ |
|
Alarm set up |
Sound Alarm |
Signal Indicator |
5 Step LED Lamp - Amplitude indicators |
Counter |
2 axis counter module |
DIO |
8 Channel Digital input and output |
|
|
UTCom205 ý ɼ |
|
|
|
|
|
|
