| SIT103 |
 |

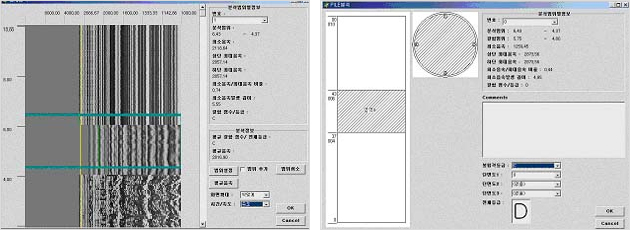

| SDM103 is computer s/w that convert analog signal from Inspection system, CS87 to digital data and perform data processing. SDM103 provides inspection report automatically. SDM103 is able to make a decision for flaw in specimen and inspection grade using internal analysis algorithm. |
| Feature |
- Real time analog to digital conversion during inspection.
- Real time A-scan image/ B-scan image display
- Restoration of Inspection report generation
- Automatic calculation of inspection counter using number of tubes
- Similar B-scan image with conventional analog inspection system
- H-scale/V-scale matching with conventional analog inspection system
- Supply long A-scan input (1250us)
- Depth display using threshold in A-scan window
- Flaw detection and generating inspection grade using internal analysis algorithm
|
|
| DIPT106 |
 |

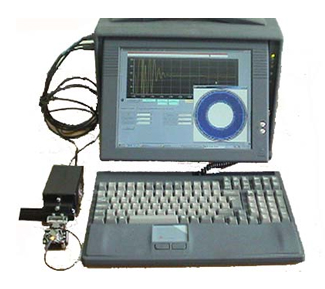

| Ultrasonic DIPT 106 (Digital Image Processing Technique) System is NDT inspection system for water pipe inspection. This system provides scan-converted B-scan image data of pipe section. Therefore user is able to detect the variation of pipe wall and flaws by performing signal and image processing. |
 |

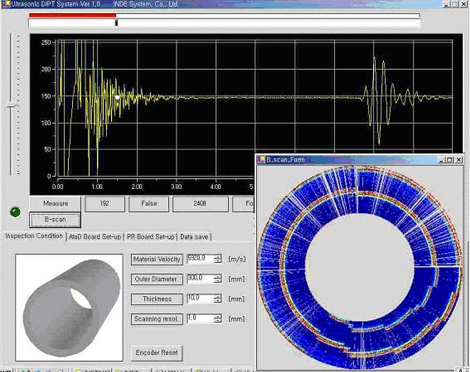

| Graphic user interface of DIPT system is configured of inspection condition set-up, RF-data display window, scan-converted image window, ultrasound properties set-up |
- Scanning resolution set-up during pipe inspection and definition of
dimension of pipe
- Easy attaching to steel pipe by applying magnetic scanner wheel.
- Adjustment of ultrasound in transmitting and receiving
- Inspection data restoration (ASCII, BMP)
- Sampling rate: up to 100MHz
|
| Requirement: |
- OS: Windows 2000
- H/W : Intel Pentium4 CPU, Main Memory : 128MB
- 100MB HDD, 16MB SVGA card
|
|
|
|
|
|
